RESIDENTIAL

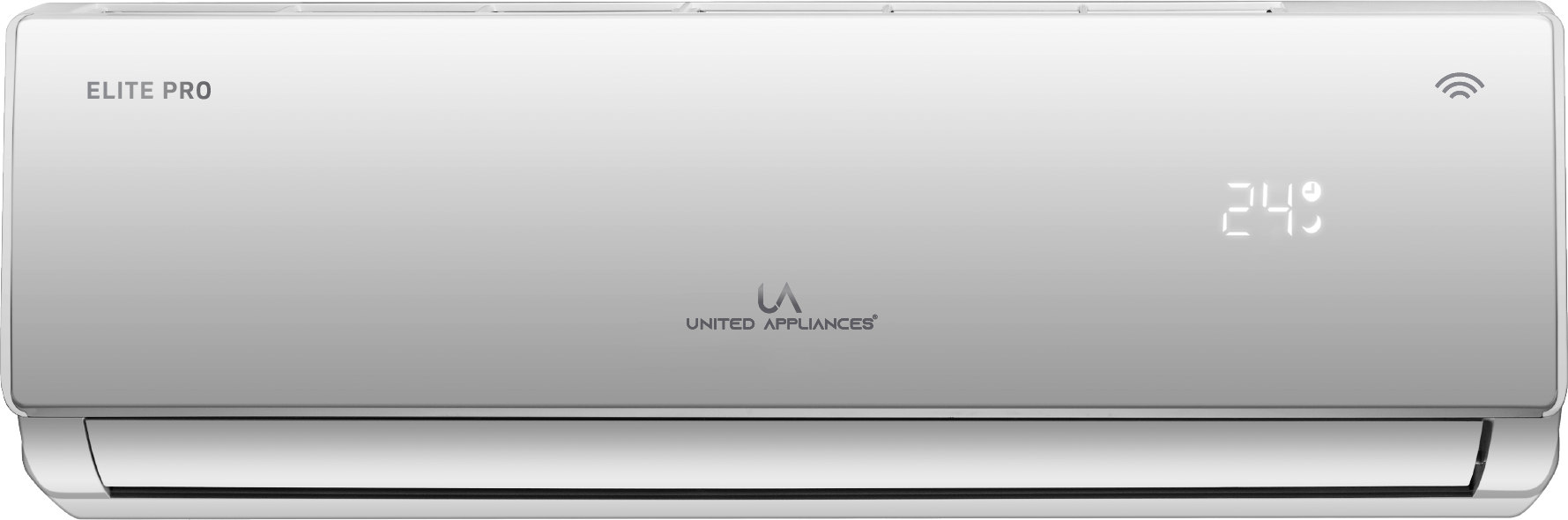

ELITE PRO SERIES

100%

WIFI

R32

REFRIGERANT

TURBO

COOL

10 YEARS*

WARRANTY

DESCRIPTIONUNITPARAMETER
POWER SUPPLYV115
RATED COOLING CAPACITYBTU/h12,000
RATED HEATING CAPACITYBTU/h12,000
ENERGY EFFICIENCYSEER220
COOLING POWER INPUTW1,240
HEATING POWER INPUTW1,150
COOLING INPUT CURRENTA10.9
HEATING INPUT CURRENTA9.9
RECOMMENDED BREAKER CAPACITYA25
INDOOR UNIT (IDU) SOUND LEVEL*dB(A)45~28
OUTDOOR UNIT (ODU) SOUND LEVEL*dB(A)55
CONDENSER HEAT EXCHANGER TYPE---Copper tubes with Golden Fin coated aluminum fins.
COMPRESSOR TYPE---Rotary
REFRIGERANT TYPE---R32
REFRIGERANT CHARGEoz20.46
PRE-CHARGED PIPE LENGTHft25
ADDITIONAL REFRIGERANT CHARGEoz0.35
LIQUID LINE PIPE DIAMETERinch1/4"
GAS (SUCTION) LINE PIPE DIAMETERinch3/8"
MAX. INTERCONNECTION ELEVATION (IDU-ODU)ft33
MAX. PIPING LENGTHft49
IDU PRODUCT DIMENSIONS (A x B x C)inch31.93 x 7.8 x 11.50
ODU PRODUCT DIMENSIONS (A x B x C)inch31.5 x 12.01 x 21.69
IDU PACKAGING DIMENSIONS (A x B x C)inch31-1/2 x 12 x 21-3/4
ODU PACKAGING DIMENSIONS (A x B x C)inch33-1/2 x 14-1/8 x 23-5/8
IDU NET WEIGHTlbs18.7
ODU NET WEIGHTlbs52.9
IDU GROSS WEIGHTlbs116.6
ODU GROSS WEIGHTlbs257.1
DESCRIPTIONUNITPARAMETER
POWER SUPPLYV208/230
RATED COOLING CAPACITYBTU/h9,000
RATED HEATING CAPACITYBTU/h10,000
ENERGY EFFICIENCYSEER220
COOLING POWER INPUTW720
HEATING POWER INPUTW870
COOLING INPUT CURRENTA4.5
HEATING INPUT CURRENTA3.7
RECOMMENDED BREAKER CAPACITYA15
INDOOR UNIT (IDU) SOUND LEVEL*dB(A)42~28
OUTDOOR UNIT (ODU) SOUND LEVEL*dB(A)53
CONDENSER HEAT EXCHANGER TYPE---Copper tubes with Golden Fin coated aluminum fins.
COMPRESSOR TYPE---Rotary
REFRIGERANT TYPE---R32
REFRIGERANT CHARGEoz21.16
PRE-CHARGED PIPE LENGTHft25
ADDITIONAL REFRIGERANT CHARGEoz0.35
LIQUID LINE PIPE DIAMETERinch1/4"
GAS (SUCTION) LINE PIPE DIAMETERinch3/8"
MAX. INTERCONNECTION ELEVATION (IDU-ODU)ft33
MAX. PIPING LENGTHft49
IDU PRODUCT DIMENSIONS (A x B x C)inch31.93 x 7.99 x 11.50
ODU PRODUCT DIMENSIONS (A x B x C)inch30.98 x 11.42 x 19.61
IDU PACKAGING DIMENSIONS (A x B x C)inch31 x 11-3/8 x 19-5/8
ODU PACKAGING DIMENSIONS (A x B x C)inch33 x 13-1/4 x 21-1/4
IDU NET WEIGHTlbs18.7
ODU NET WEIGHTlbs50.7
IDU GROSS WEIGHTlbs111.8
ODU GROSS WEIGHTlbs246.4
DESCRIPTIONUNITPARAMETER
POWER SUPPLYV208/230
RATED COOLING CAPACITYBTU/h12,000
RATED HEATING CAPACITYBTU/h12,000
ENERGY EFFICIENCYSEER220
COOLING POWER INPUTW1,240
HEATING POWER INPUTW1,125
COOLING INPUT CURRENTA5.4
HEATING INPUT CURRENTA4.9
RECOMMENDED BREAKER CAPACITYA15
INDOOR UNIT (IDU) SOUND LEVEL*dB(A)45~28
OUTDOOR UNIT (ODU) SOUND LEVEL*dB(A)55
CONDENSER HEAT EXCHANGER TYPE---Copper tubes with Golden Fin coated aluminum fins.
COMPRESSOR TYPE---Rotary
REFRIGERANT TYPE---R32
REFRIGERANT CHARGEoz20.46
PRE-CHARGED PIPE LENGTHft25
ADDITIONAL REFRIGERANT CHARGEoz0.35
LIQUID LINE PIPE DIAMETERinch1/4"
GAS (SUCTION) LINE PIPE DIAMETERinch3/8"
MAX. INTERCONNECTION ELEVATION (IDU-ODU)ft33
MAX. PIPING LENGTHft49
IDU PRODUCT DIMENSIONS (A x B x C)inch31.93 x 7.8 x 11.50
ODU PRODUCT DIMENSIONS (A x B x C)inch31.5 x 12.01 x 21.69
IDU PACKAGING DIMENSIONS (A x B x C)inch31-1/2 x 12 x 21-3/4
ODU PACKAGING DIMENSIONS (A x B x C)inch33-1/2 x 14-1/8 x 23-5/8
IDU NET WEIGHTlbs18.7
ODU NET WEIGHTlbs51.8
IDU GROSS WEIGHTlbs114.2
ODU GROSS WEIGHTlbs251.8
DESCRIPTIONUNITPARAMETER
POWER SUPPLYV208/230
RATED COOLING CAPACITYBTU/h18,000
RATED HEATING CAPACITYBTU/h18,000
ENERGY EFFICIENCYSEER220
COOLING POWER INPUTW1,820
HEATING POWER INPUTW1,650
COOLING INPUT CURRENTA7.9
HEATING INPUT CURRENTA7.2
RECOMMENDED BREAKER CAPACITYA20
INDOOR UNIT (IDU) SOUND LEVEL*dB(A)49~32
OUTDOOR UNIT (ODU) SOUND LEVEL*dB(A)55
CONDENSER HEAT EXCHANGER TYPE---Copper tubes with Golden Fin coated aluminum fins.
COMPRESSOR TYPE---Rotary
REFRIGERANT TYPE---R32
REFRIGERANT CHARGEoz37.74
PRE-CHARGED PIPE LENGTHft25
ADDITIONAL REFRIGERANT CHARGEoz0.35
LIQUID LINE PIPE DIAMETERinch1/4"
GAS (SUCTION) LINE PIPE DIAMETERinch3/8"
MAX. INTERCONNECTION ELEVATION (IDU-ODU)ft49
MAX. PIPING LENGTHft65
IDU PRODUCT DIMENSIONS (A x B x C)inch35.83 x 8.11 x 11.57
ODU PRODUCT DIMENSIONS (A x B x C)inch33.54 x 13.74 x 23.70
IDU PACKAGING DIMENSIONS (A x B x C)inch33-1/2 x 13-3/4 x 23-3/4
ODU PACKAGING DIMENSIONS (A x B x C)inch35-3/8 x 16 x 25-3/8
IDU NET WEIGHTlbs21.4
ODU NET WEIGHTlbs66.8
IDU GROSS WEIGHTlbs147.3
ODU GROSS WEIGHTlbs324.7
DESCRIPTIONUNITPARAMETER
POWER SUPPLYV208/230
RATED COOLING CAPACITYBTU/h24,000
RATED HEATING CAPACITYBTU/h24,000
ENERGY EFFICIENCYSEER220
COOLING POWER INPUTW2,250
HEATING POWER INPUTW2,450
COOLING INPUT CURRENTA9.8
HEATING INPUT CURRENTA10.7
RECOMMENDED BREAKER CAPACITYA30
INDOOR UNIT (IDU) SOUND LEVEL*dB(A)51~34
OUTDOOR UNIT (ODU) SOUND LEVEL*dB(A)60
CONDENSER HEAT EXCHANGER TYPE---Copper tubes with Golden Fin coated aluminum fins.
COMPRESSOR TYPE---Rotary
REFRIGERANT TYPE---R32
REFRIGERANT CHARGEoz42.33
PRE-CHARGED PIPE LENGTHft25
ADDITIONAL REFRIGERANT CHARGEoz0.35
LIQUID LINE PIPE DIAMETERinch1/4"
GAS (SUCTION) LINE PIPE DIAMETERinch1/2"
MAX. INTERCONNECTION ELEVATION (IDU-ODU)ft49
MAX. PIPING LENGTHft65
IDU PRODUCT DIMENSIONS (A x B x C)inch39.76 x 8.66 x 12.40
ODU PRODUCT DIMENSIONS (A x B x C)inch36.1 x 14.76 x 27.56
IDU PACKAGING DIMENSIONS (A x B x C)inch36-1/8 x 14-3/4 x 27-1/2
ODU PACKAGING DIMENSIONS (A x B x C)inch37-3/4 x 16-7/8 x 28-7/8
IDU NET WEIGHTlbs26.5
ODU NET WEIGHTlbs88.2
IDU GROSS WEIGHTlbs194.4
ODU GROSS WEIGHTlbs428.7
DESCRIPTIONUNITPARAMETER
Model－UAWH36-DD3D1
Rated voltageV208/230
SEERSEER220
Cooling capacityBTU/h37,200
Heating capacityBTU/h38,500
Cooling power inputW3,200
Heating power inputW3,200
Cooling currentA14
Heating currentA14
RefrigerantRR410A
Refrigerant chargeoz84.7
IDU Sound power leveldB (A)66/55/47
ODU Sound power leveldB (A)72
Dimension IDU (WxHxD)in53 10/64 x 12 53/64 x 9 61/64
Dimension ODU (WxHxD)in39 24/64 x 29 24/64 x 16 52/64
IDU Net weightlb44.1
ODU Net weightlb127.9
DESCRIPTIONUNITPARAMETER
Model
-GWH30QFXH-D3DNB2A
Rated VoltageV～208/230
SEER*SEER / SEER219 / 20
Cooling capacityBTU/h30000
Heating capacityBTU/h30000
Cooling Power InputW2667
Heating Power InputW2588
Cooling CurrentA12
Heating CurrentA11.5
Refrigerant-R410A
Refrigerant Chargekg2.1
IDU Sound Power LeveldB (A)66/60/57/55/52/50/47
IDU Dimension (W×H×D)mm1350×326×253
IDU Net Weightkg20
ODU Sound Power LeveldB (A)72
ODU Dimension (W×H×D)mm1000×746×427
ODU Net Weightkg51.5
DESCRIPTIONUNITPARAMETER
Model
-GWH36QFXH-D3DNB2B
Rated VoltageV～208/230
SEER*SEER / SEER220 / 20
Cooling capacityBTU/h33600
Heating capacityBTU/h34600
Cooling Power InputW3200
Heating Power InputW3200
Cooling CurrentA14
Heating CurrentA14
Refrigerant-R410A
Refrigerant Chargekg2.4
IDU Sound Power LeveldB (A)66/60/57/55/52/50/47
IDU Dimension (W×H×D)mm1350×326×253
IDU Net Weightkg20
ODU Sound Power LeveldB (A)72
ODU Dimension (W×H×D)mm1000×746×427
ODU Net Weightkg58
